واحد:mm

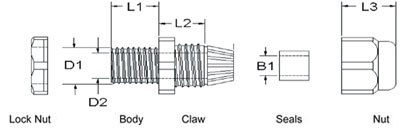

| کد |
Thread |
قطر سوراخ نصب
|
D2 |
B1 |
L1 |
L2 |
L3 |
سایز کابل
|
بسته بندی
|
| EG-7 |
PG-7 |
12.5 |
8.3 |
6.9 |
7.9 |
20.0 |
13.3 |
3.5 ~ 6 |
50تعداد در بسته
|
| EG-7LS |
PG-7 |
12.5 |
8.3 |
6.9 |
7.9 |
20.0 |
13.3 |
3.5 ~ 6 |
| EG-9 |
PG-9 |
15.2 |
10.5 |
8.0 |
7.9 |
22.0 |
15.1 |
4 ~ 8 |
| EG-9L |
PG-9 |
15.2 |
10.5 |
8.0 |
14.7 |
22.0 |
15.1 |
4 ~ 8 |
| EG-11 |
PG-11 |
18.3 |
13.2 |
10.5 |
7.9 |
23.7 |
18.3 |
5 ~ 10 |
| EG-11L |
PG-11 |
18.3 |
13.2 |
10.5 |
14.9 |
23.7 |
18.3 |
5 ~ 10 |
| EG-13.5 |
PG-13.5 |
20.4 |
15.5 |
12.0 |
8.9 |
24.6 |
18.9 |
6 ~ 12 |
| EG-13.5L |
PG-13.5 |
20.4 |
15.5 |
12.0 |
15.8 |
24.6 |
18.9 |
6 ~ 12 |
| EG-16 |
PG-16 |
22.5 |
17.2 |
14.0 |
9.8 |
26.2 |
19.5 |
10 ~ 14 |
| EG-21 |
PG-21 |
28.3 |
22.4 |
18.4 |
10.8 |
30.0 |
23.7 |
13 ~ 18 |
| EG-29 |
PG-29 |
37.0 |
30.6 |
25.0 |
10.8 |
35.0 |
27.4 |
18 ~ 25 |
25 تعداد در بسته |
| EG-36 |
PG-36 |
47.0 |
35.3 |
35.5 |
14.5 |
42.3 |
30.3 |
22 ~ 32 |
10تعداد در بسته |
| EG-42 |
PG-42 |
54.0 |
40.0 |
40.0 |
14.5 |
44.0 |
31.2 |
30 ~ 38 |
| EG-48 |
PG-48 |
59.3 |
43.2 |
46.0 |
15.6 |
42.7 |
31.3 |
34 ~ 44 |
|
